Find tool edges
Measure and analyze cutting tools with odd or even numbers of flute edges.
EDGE MEASUREMENT · MEASUREOD®
Measure cutting-tool diameter and runout with optical data.
Edge Measurement (EM) MeasureOD® is the Software solution for measuring the actual (effective) tool diameter and runout of machine tools such as drill bits, end mills, reamers, and cutting tools. This Software tool was written to take advantage of the Keyence P/N LS-9501 or LS-9501P Controller paired with a Keyence P/N LS-9XXX Optical Micrometer.
One-time software license · $1,995 · Keyence and fixture hardware sold separately
16,000samples per second
Odd + evenflute-count analysis
Diameter + runouteffective tool inspection
Windows 10/11one-time software license
MEASUREMENT WORKFLOW
From rotating tool to reviewed results
EM MeasureOD® configures a compatible Keyence controller for edge measurement, analyzes the measured profile, and presents the results for operator review.
Review the profile

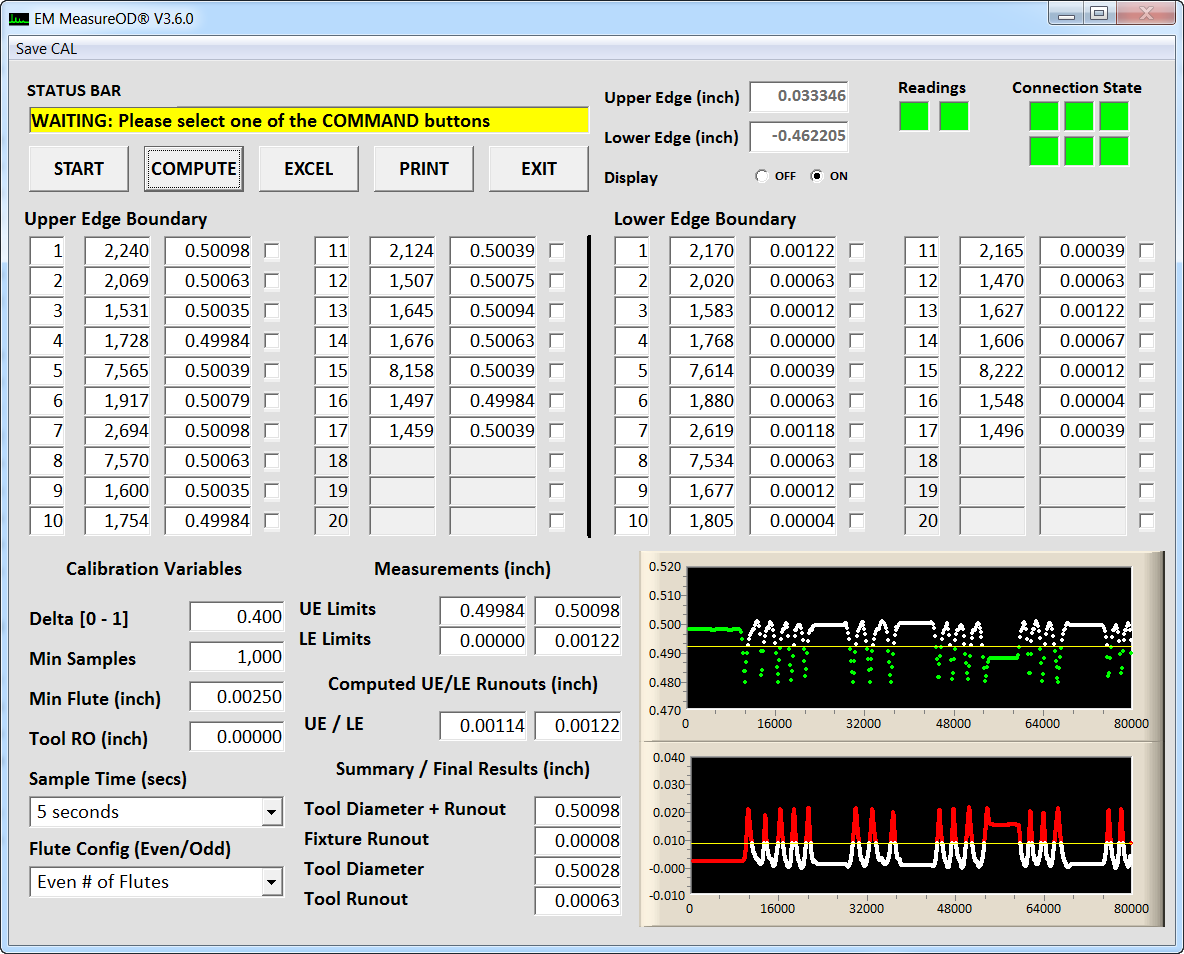

Graphically display measurement data and identify flute peaks for the operator.
Account for fixture runout
For even-flute tools, the software can compute and remove fixture runout from measured tool runout.
Export and label results
Export measurement results to Microsoft Excel or print a measurement label using a connected DYMO label printer.
BUILT AROUND KEYENCE
Software that configures the measurement controller
EM MeasureOD® automatically connects to and programs a compatible Keyence LS-9501 or LS-9501P controller for edge measurements.
Explore the Keyence setup
SEE EM MEASUREOD® IN USE
Product demonstration
READY TO INSPECT CUTTING TOOLS?
Get the software and confirm your hardware setup.
Review the connection requirements, download the brochure, or purchase the EM MeasureOD® software license.
